Inabon River Bridge

Project Description: Infrastructure Design

Scope of Work:

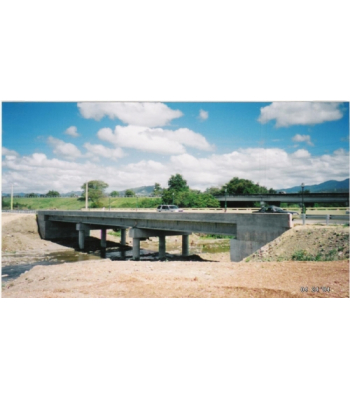

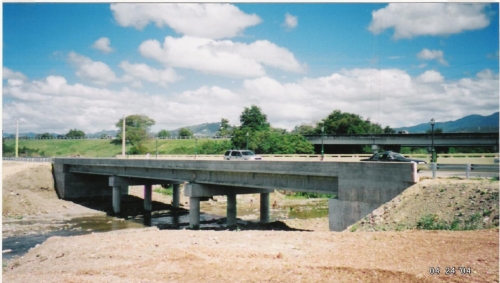

The project consisted of the Structural Design of a 3-span concrete bridge to be used by both vehicles and pedestrians. The bridge spans a total of 210 ft. over the Inabon River. The project is located at Peñoncillo Ward, Juana Díaz, Puerto Rico. The structural design was contracted by the government of the Municipality of Juana Díaz. The project demanded the revision of the Puerto Rico Highway Authority’s Design Department as well as the Federal Emergency Management Agency (FEMA). Cost estimates, specifications and permits of all agencies having jurisdiction over the project were included with the project.

Type of Construction: Bridge Structure

Project Cost: 1.3 M

Owner: Municipality of Juana Díaz

Location: Juana Díaz, Puerto Rico
